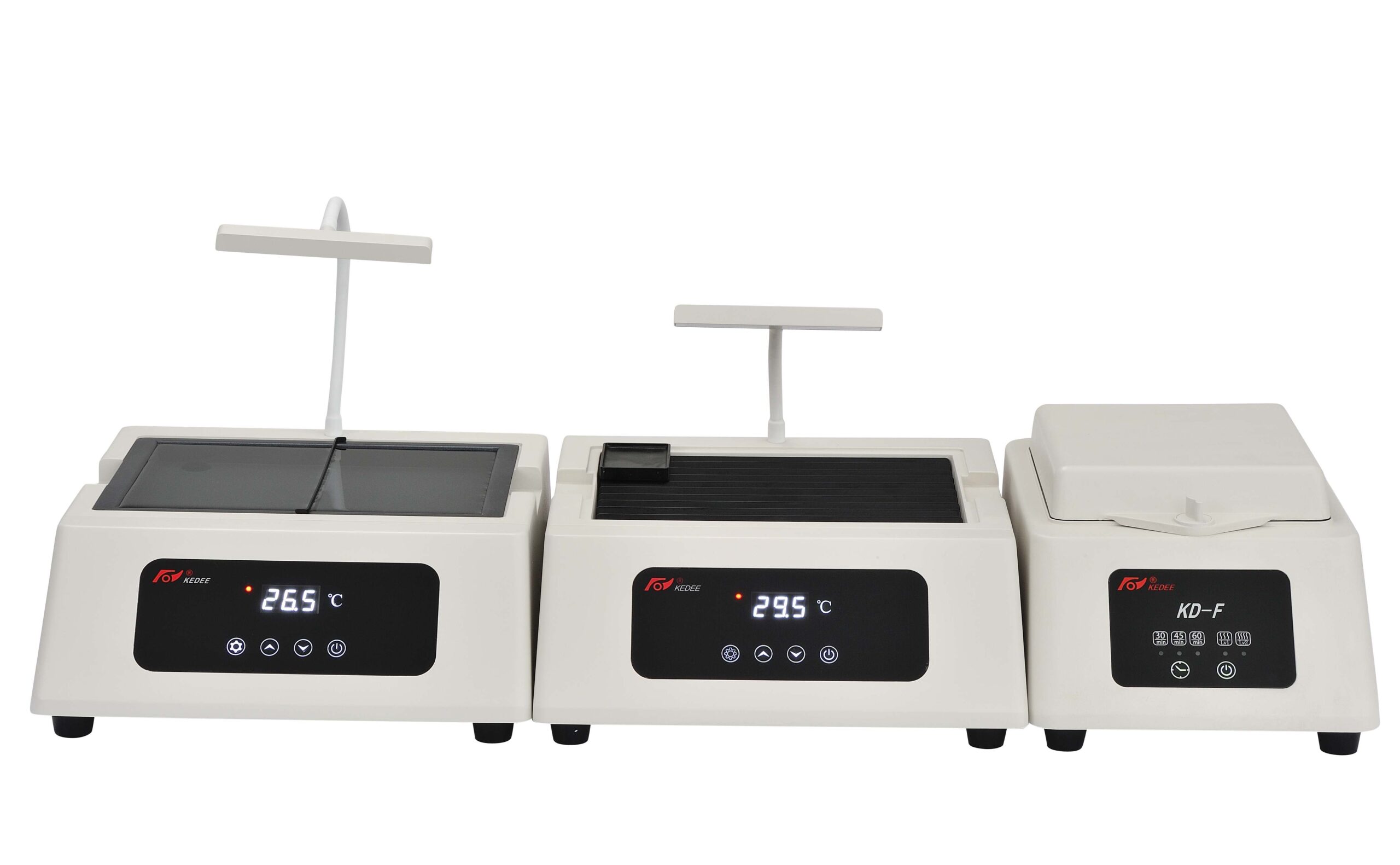

Smart Tech KD-PHF
- Touch interface.
- Intelligent PID temperature control system.
- Triple temperature control protection system.
- Universal Angle lighting system.
- Free division function of water area.
- Surface debris cleaning function
- Separate structure design of Water Bath Dish
- Separate structure design of Drying Station
- Drying Stationleaching function
- Drying Stationseal wax function
- Timing drying function.
Technical parameters

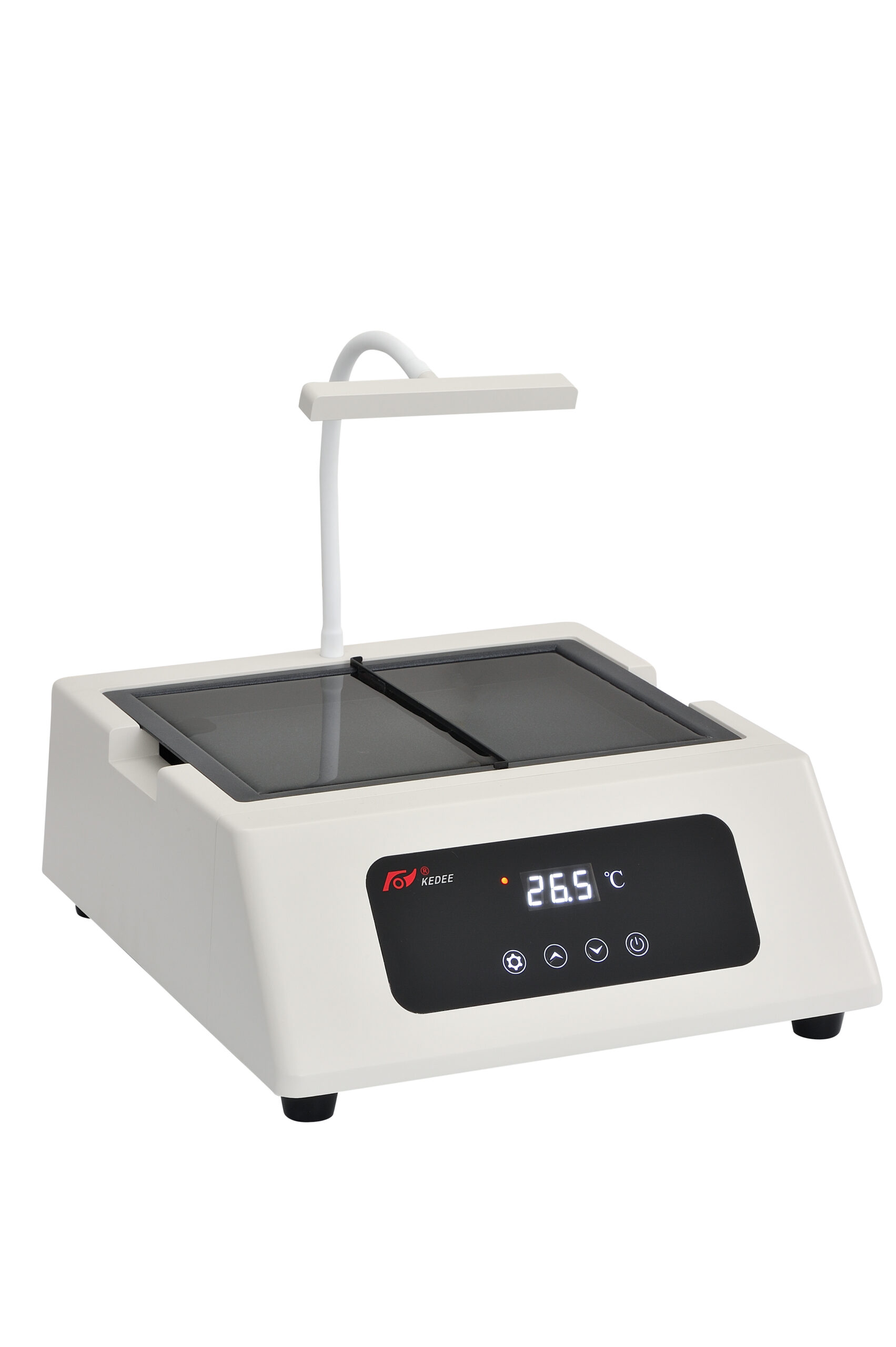

Dimensions of Water Bath Dish 247 x 182 x 55 mm
Capacity of Water Bath Dish 2.3 L

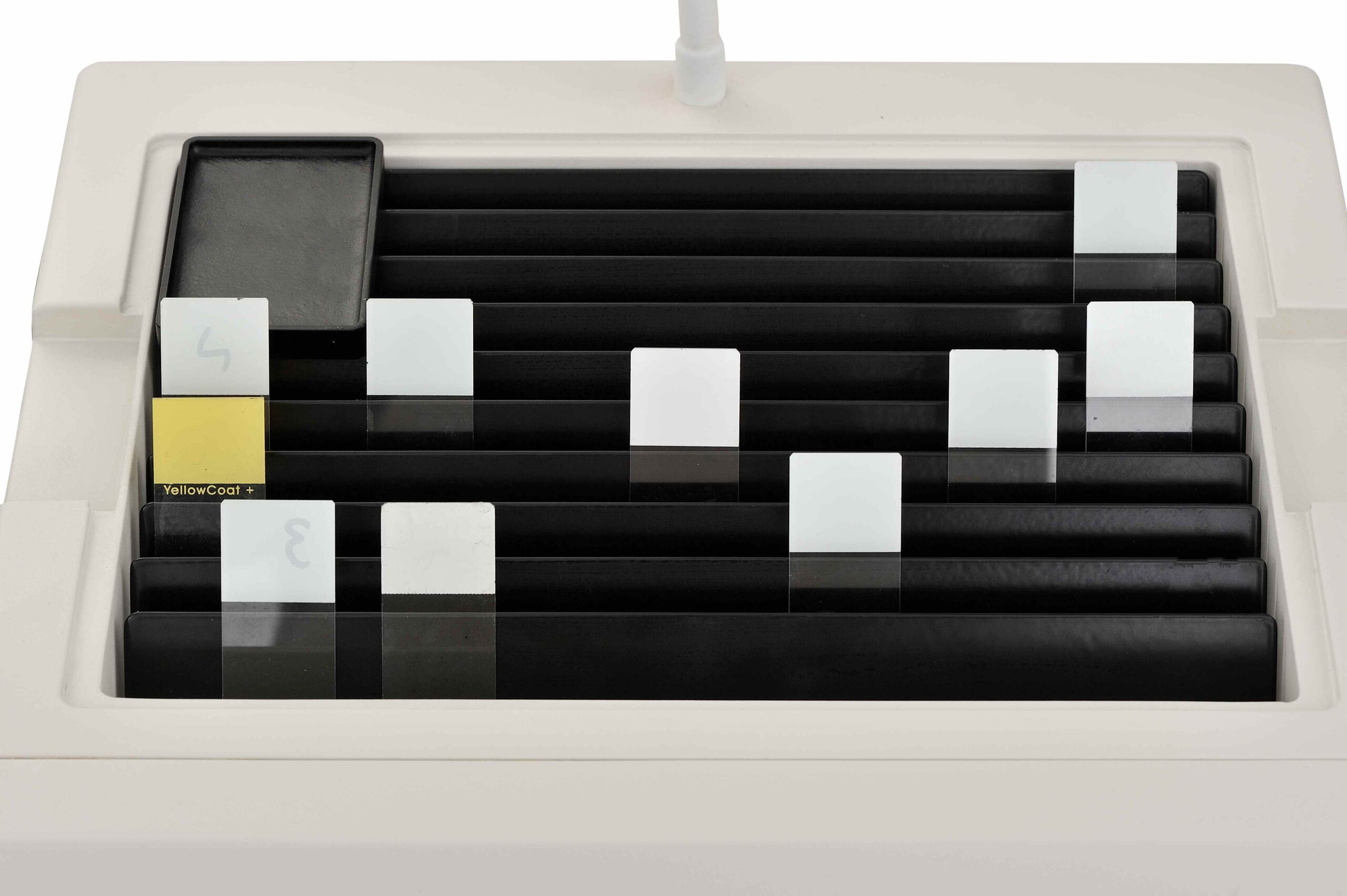

Dimensions of Drying Station 256 x 188 x 52 mm
Capacity of Drying Station 100pcs，10 rows，10pcs/1 row
Size of sealing table 74 x 46 x 5 mm
Temperature Range 0~99℃
Slope Angle of Drying Station 60°
Temperature Control Precision ±1℃
Lighting brightness 0~5 level (adjustable)

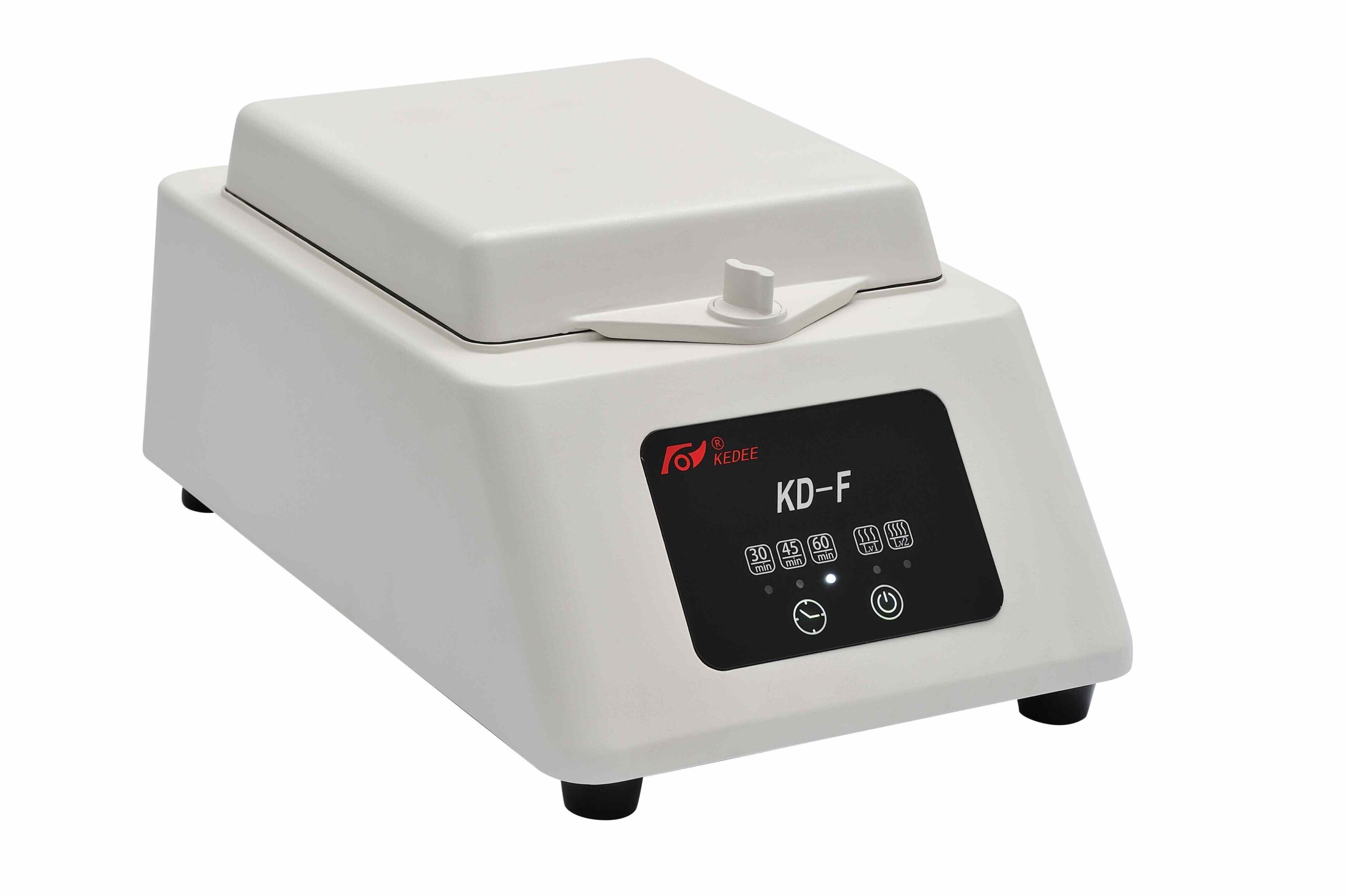

Dimensions of Slide Warmer 212 x 190 x 130 mm
Capacity of Slide Warmer Approximately 300 pcs
Temperature of Slide Warmer Two gears（70℃/75℃）
Time setting of Slide Warmer 30 min / 45 min / 60 min
Electrical parameters
Working Voltage AC110V~120V / AC 220V~240V
Frequency 50Hz / 60Hz
Power 900W
Fuse F6A L 250V / F12A L 125V
Safety of electric I
Working environment
Ambient Temperature 5℃～45℃
Relative humidity ≤80%
Air pressure range 700hPa～1060hPa
Packaging parameters
Overall Dimensions 890 x 375 x 165mm
Net Weight 14 kg
Dimensions of Water Bath Dish 330 x 375 x 130 mm
Net Weight of Water Bath Dish 5 kg
Dimensions of Drying Station 330 x 375 x 130mm
Net Weight of Drying Station 6 kg
Dimensions of Slide Warmer 230 x 375 x 165 mm
Net Weight of Slide Warmer 3 kg
