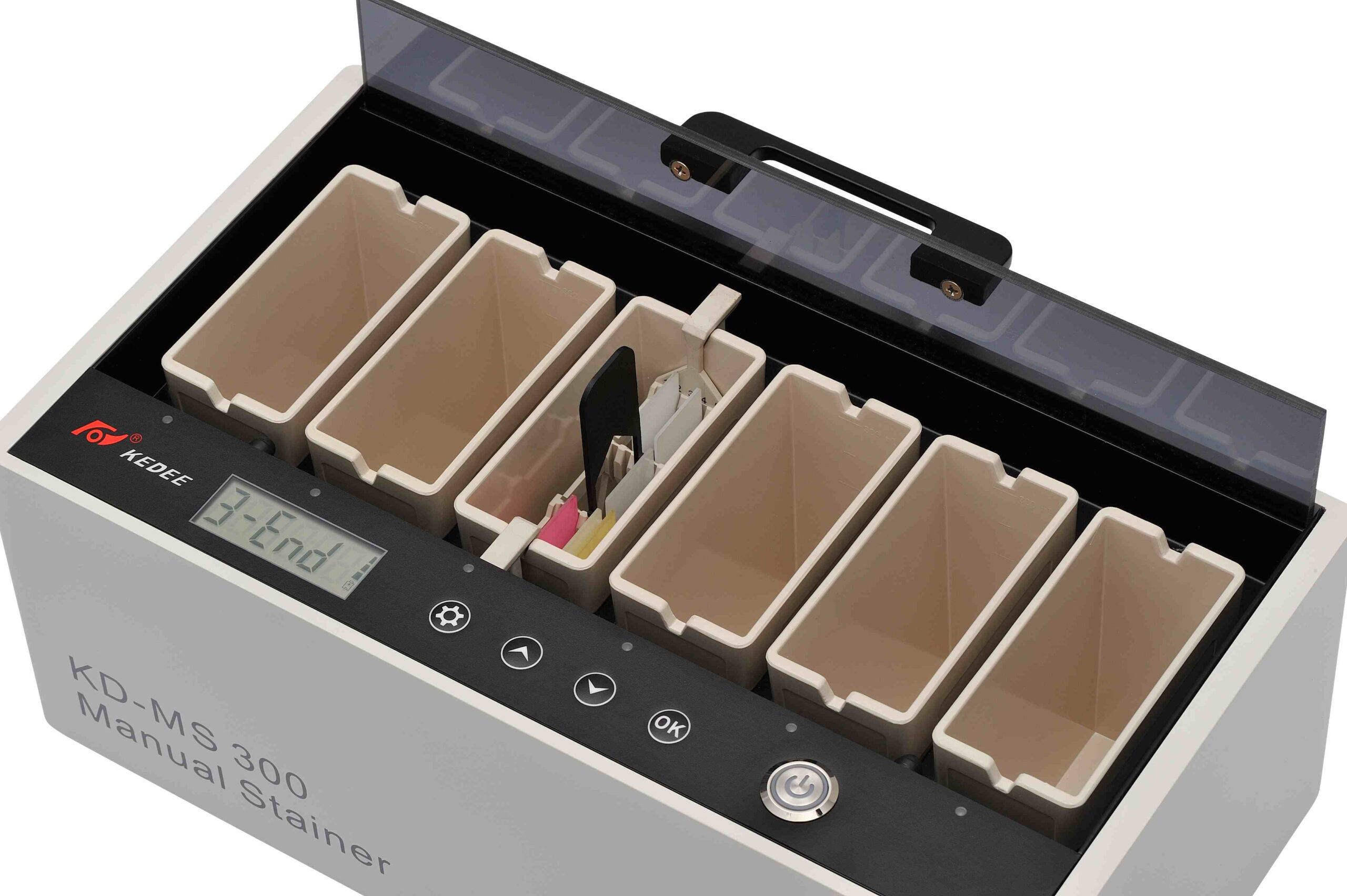

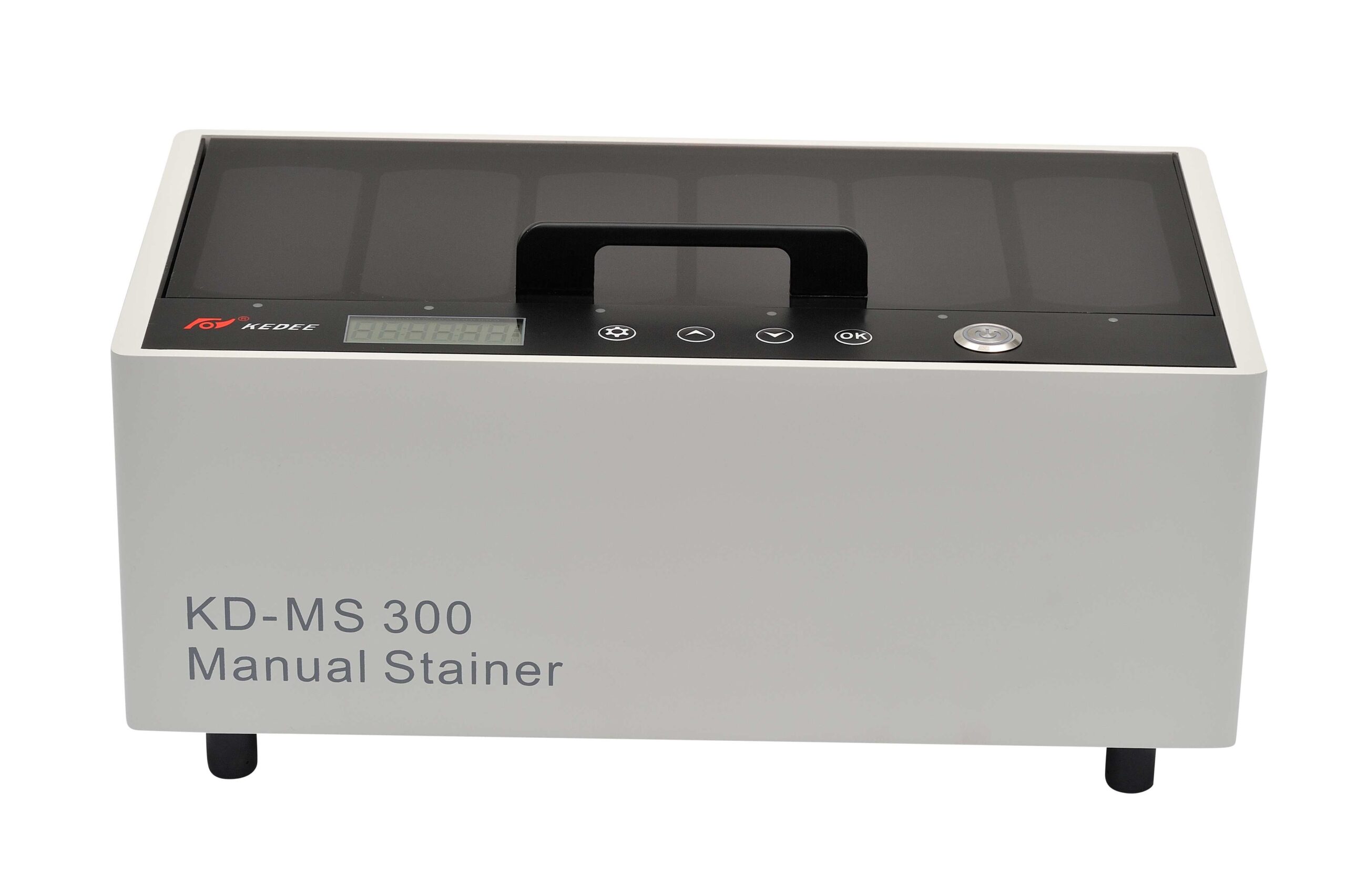

Sense Tech KD-MS 300
- Original automatic dyeing frame identification function, support flexible adjustment of dyeing frame
- Intelligent timing system, can set and sense the staintime
- Dual power supply control module
- Product combination design can be freely combined according to the need to increase the number
- Integrated dyeing table structure design, easy to clean and maintain
- Independent cup seal cover design, effectively prevent reagent volatilization.
Technical parameters:
Capacity of Each Cup Approximately 300 ml
Numbers of Station 6pcs
Slide rack capacity 15 specimen slides
Processing time of each station 01s – 59s/0-99 min
Slide rack loading capacity Can run multiple staining rack continuously
Electrical parameters:
Working Voltage DC 3.0~4.5V / 3PCS 1.5V batteries
Peak working current ≤ 25mA
Battery working hours: Approximately 900 hours
Working environment
Ambient Temperature 5℃~45℃
Relative humidity ≤80%
Air pressure range 700hPa~1060hPa
Packaging parameters
Overall Dimensions 367 x 196 x 154 mm
Net Weight 5 kg
