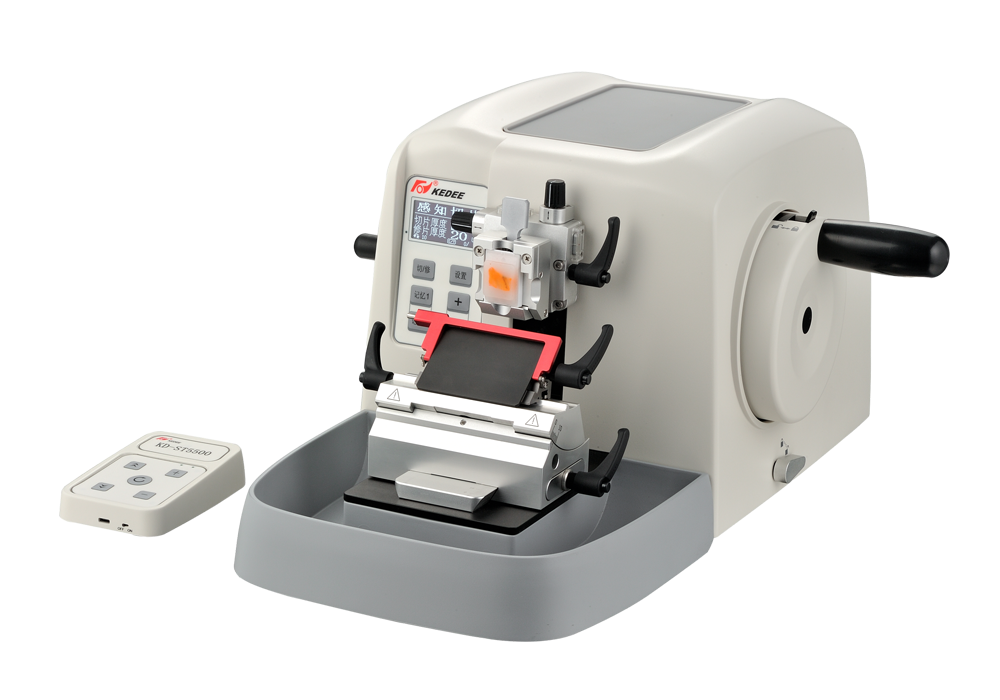

KD-ST5500 Semi-automated Rotary Microtome
This model utilizes a human oriented design, easy to switch between cutting and trimming, advanced technology, and stable performance, and is user-friendly;
Specimen feeding drive utilizes an intelligent control system, it has three modes: Conventional mode , Intelligence sensing mode and whole layer cutting mode;
Advanced drive systems including multiple functions, sectioning, trimming, fast forward, fast backward and quick conversion;
Uses imported cross-roller guide rails and a screw motion mechanism to ensure precision resulting in superior sectioning performance;
OLED screen shows section and trimming thickness, as well as number of sections;
With a safety and emergency braking system, security alarm system, driver overload protection, auto-sleep protection system;
Easy and fast switching between different specimen clamps (two options: paraffin block clamp and cassette clamp);
Hand-wheel balance is precisely adjusted and can be locked at any position to ensure the safety of the slicing operation;
Blade holder can be laterally moved to avoid moving the blade with direct contact, thereby utilizing the entire length of the blade (three different segments);
The red bar on the blade holder covers the whole length of blade to protect the user and the push bar enables easy change of the blade;
Hand-wheel balance is precisely adjusted and can be locked at any position to ensure the safety and convenience of sectioning;
Large-volume waste tray is easy to remove and clean, and items such as deposable blades can be stored on the top of the housing.
0.25 – 2.5μm increment 0.25μm
2.5 – 5μm increment 0.5μm
5.0 – 10μm increment 1μm
10 – 30μm increment 2μm
30 – 60μm increment 5μm
60 – 100μm increment 10μm
Trimming Thickness Setting Range: 1 – 600μm
1 – 10μm increment 1μm
10 – 20μm increment 2μm
20 – 50μm increment 5μm
50 – 150μm increment 10μm
150 – 600μm increment 50μm
Retraction Setting Range: 0—100μm
Whole layer clearance distance Range: 10 – 6000μm
10-12-15-20-25~5000~6000μm
Minimum Setting of Sectioning Thickness: 0.25μm
Total Horizontal Specimen Feed: 30mm
Vertical Specimen Stroke: 70mm
Movement Range of the Base of Blade Holder Base: 0-65mm (front to back)
Movement Range of the Blade Press plate: 0-20mm
Cutting/Trimming count number: 0~9999
Memory position of clamp head: two position set
The optional separate wireless controller
Specimen Clamp Rotation: at any angle within 360 degrees.
Specimen Orientation: XY – 8°
Maximum Specimen Size:70×70mm (optional clamp)
Feed speed adjust: 2000μm/s
Precision Error:±1%
Working Voltage: AC 220V±10% 50Hz (standard model) / AC110V±10% 60HZ
Power:100W
Dimensions:465×595×295 mm (W×D×H)
Net weight:28kg
