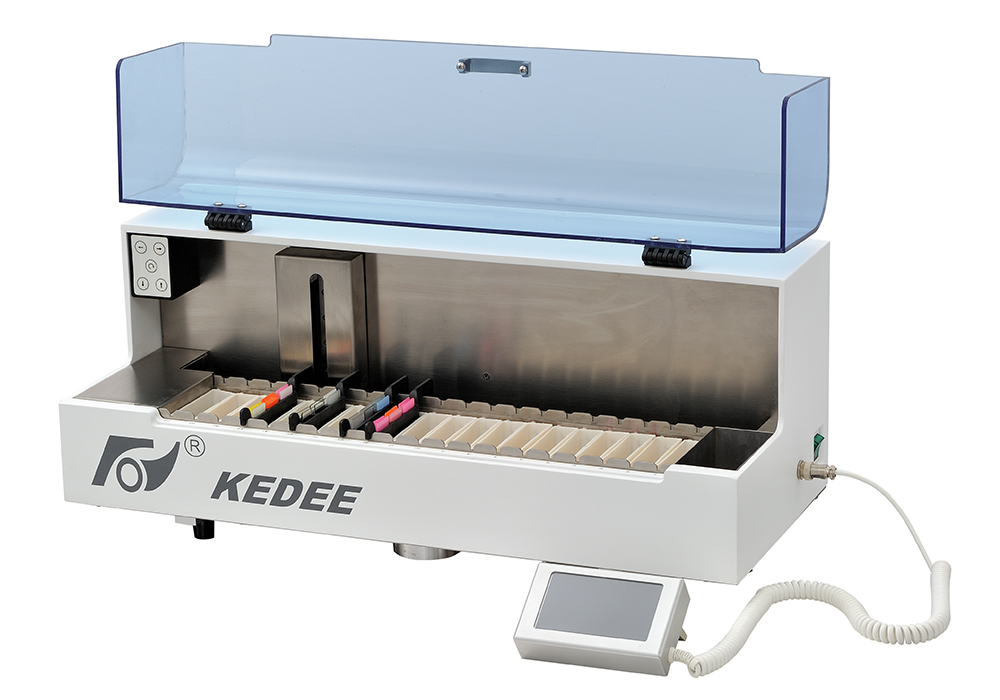

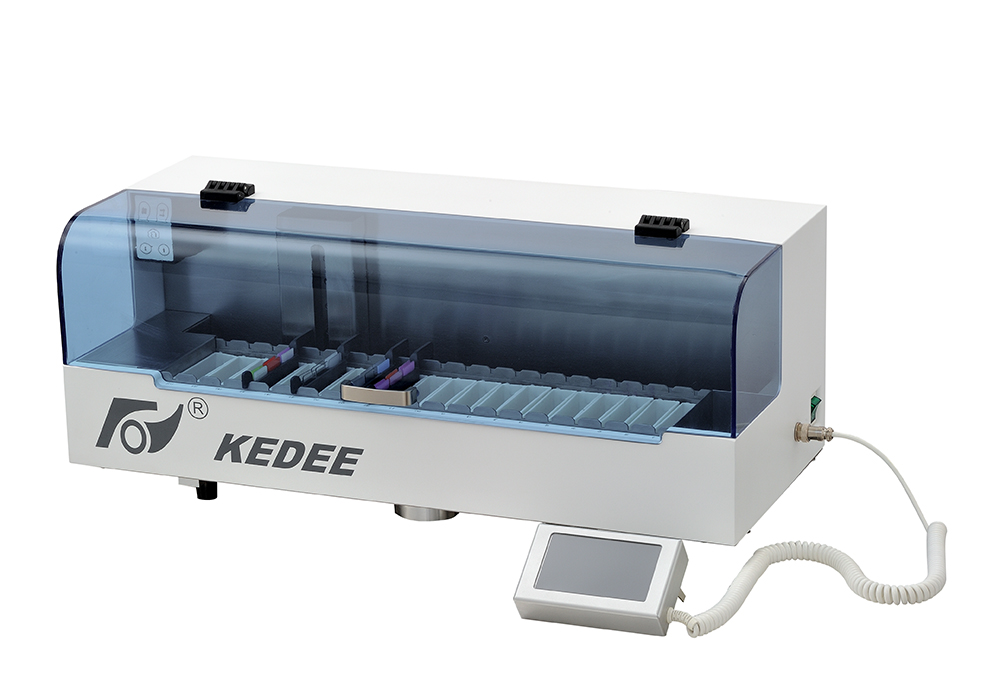

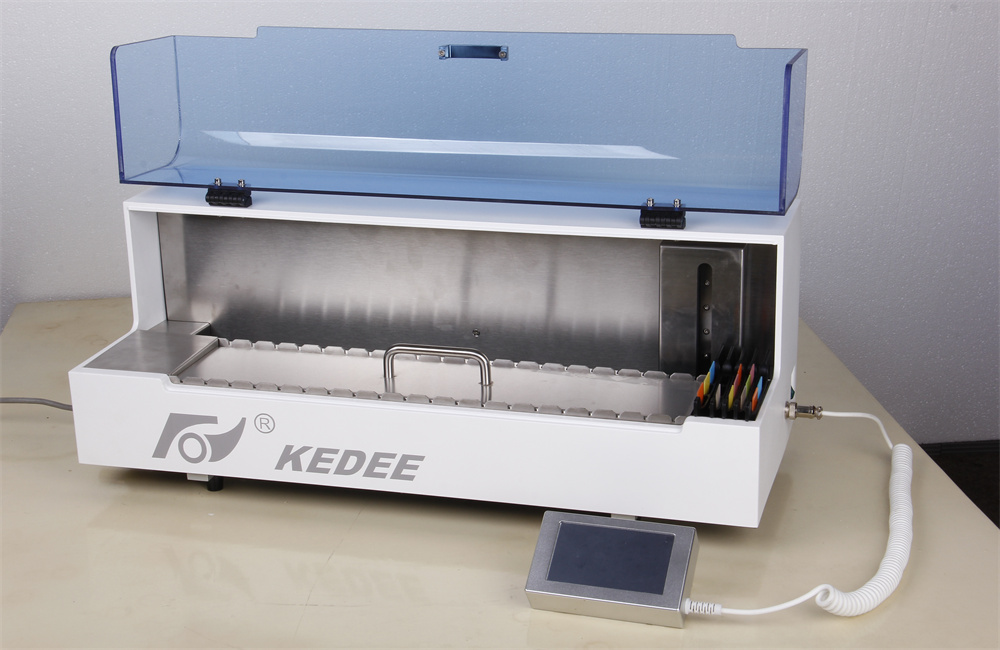

KD-QS1100 Fully Automated Slide Stainer
Small Size for the unit. With LED touch operation system. It has unique design for the mechanical arm with low energy consumption.
Sample can be added anytime for continuous staining.
When one station takes longer working time, more repeat station can be set for speed up working process.
From No.2 Station to No.17 Station can be set to water clean. It has function for Auto Start / Stop on cleaning, and Water flow can be adjusted according to requirements.
Any station can be set for end station; it will buzz until staining work finished.
With water protection device, when water blockage, it will shut off water resource itself and make the warning cue.
On auto working progress, station can be changed anytime according to requirements.

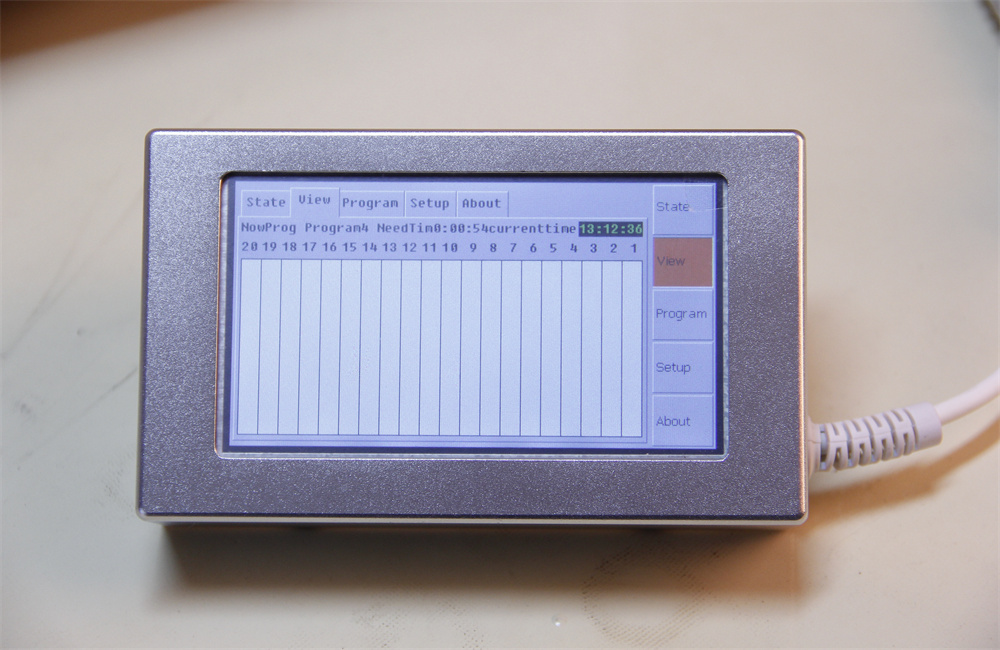

Staining Work State shown by Dynamic Graph

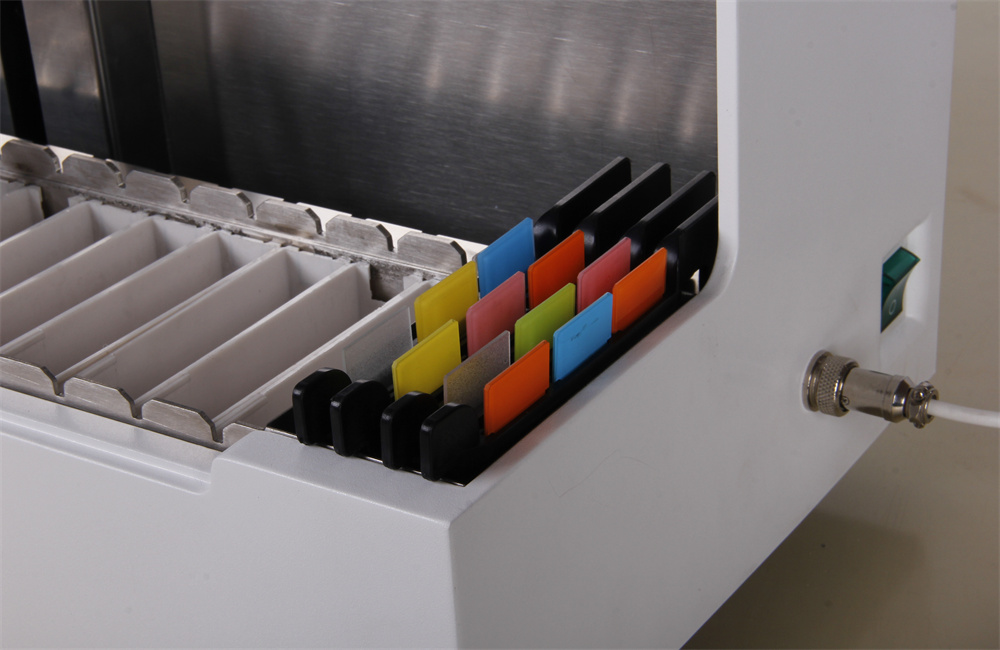

Capacity：6pcs slides in each holder, for continuous staining process
Numbers of Station：20pcs，（Repeat Station, Clean Bath can be set）
Volume of Station：135ml
Length of Processing Time in the Cup: Adjustable within 0 – 59 minutes and within 0 -59 seconds
Time for Changing Station, Stay and Leaching Liquid：10S
Numbers of Program: 10pcs, with remind code for online faulty
Working Voltage：AC220V±10% 50Hz / AC110V±10% 60Hz
Frequency：50Hz/60Hz
Power：100W
Dimension：705×300×280 mm (W×D×H)
Net Weight: 21kg
