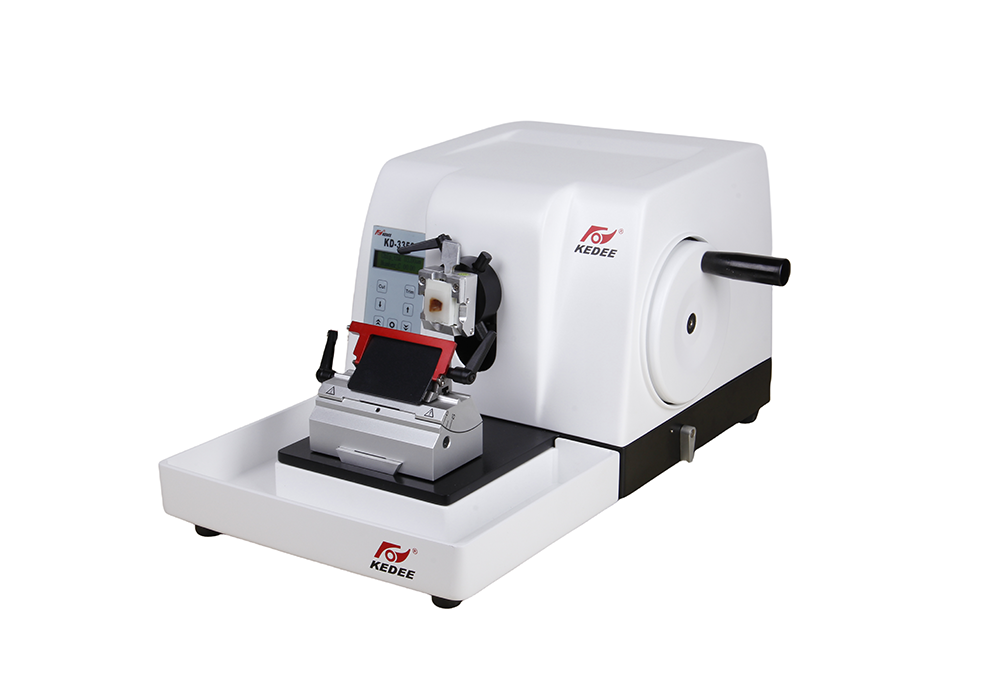

KD-3358 Semi-automated Rotary Microtome
The Semi-automatic Microtome KD-3358 provides utmost reliability, user benefit and outstanding operator comfort. The high section stability and precision turn this instrument into an universal multipurpose microtome for highest demands on sectioning paraffin as well as for medicine and industry. The cutting motor drive allows precise sectioning, ensuring good reproducibility. The large section thickness range from 0.25 µm to 60 µm is divided into fine sectioning and trim sectioning. You can easily switch between these two ranges, even while sectioning.
Section Thickness Setting Range: 0—60μm
0—1μm increment 0.25μm
1—10μm increment 1μm
10—20μm increment 2μm
20—60μm increment 5μm
Trimming Thickness Setting Range: 1—900μm
1—10μm increment 1μm
10—20μm increment 2μm
20—100μm increment 5μm
100—900μm increment 50μm
Minimum Setting of Sectioning Thickness: 0.25μm
Horizontal Feed: 28mm
Vertical Specimen Stroke: 52mm
Specimen Holder Rotation: at any angle within360 degrees
Movement Range of the Base of BladeHolder Base: 0-60mm (front to back)
Movement Range of the Blade Press plate: 0-23mm
Specimen Clamp Rotation:at any angle within 360 degrees
Specimen Orientation:XY – 8°
Maximum Specimen Size:50×70mm
Precision Error: ±5%
Working Voltage:AC 220V±10% 50Hz (standard model); AC110V±10% 60Hz
Power: 100W
Dimensions: 585×410×305mm(W×D×H)
Net Weight: 29kg
